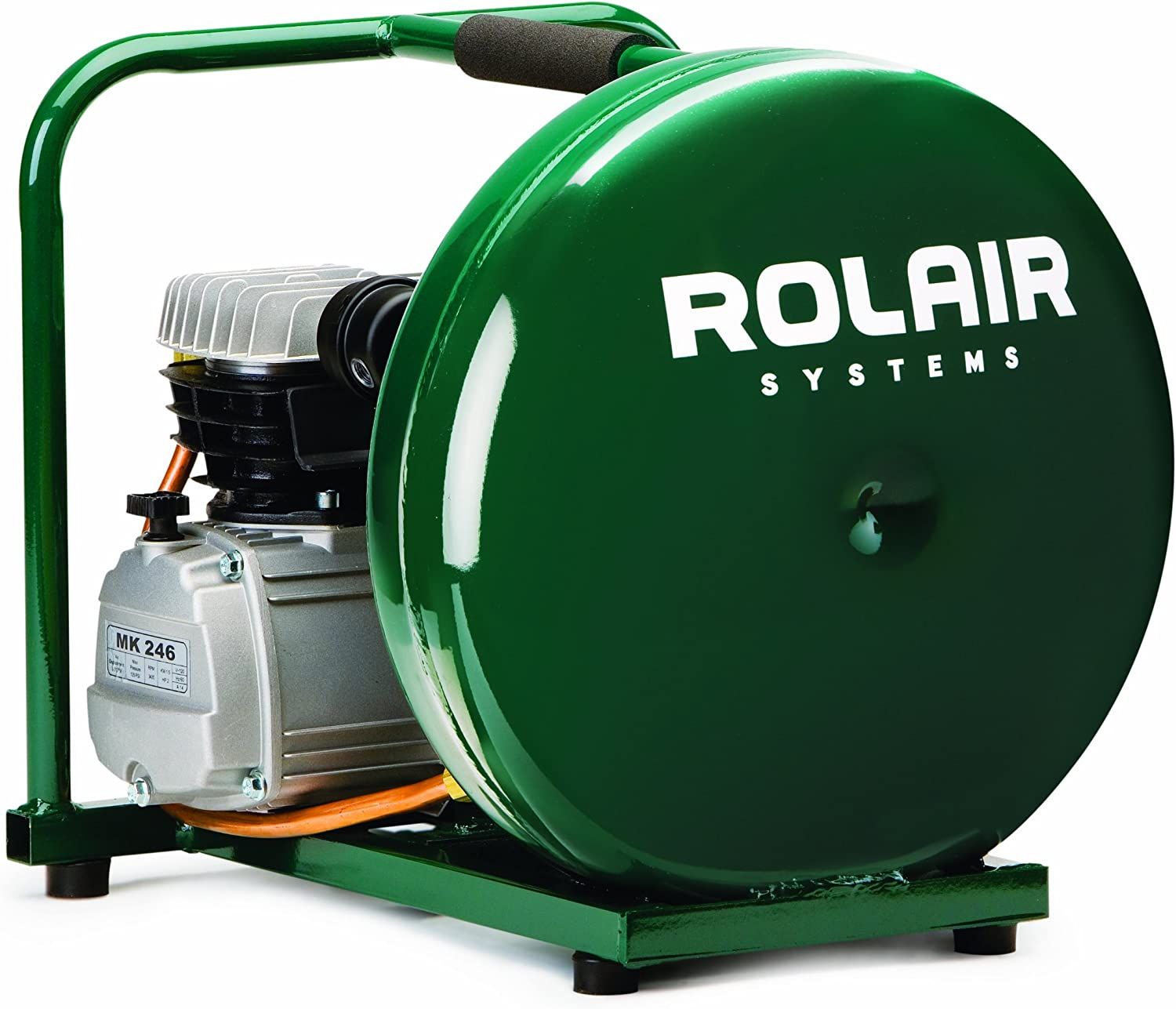

Rolair D2002HPV5 Pancake Compressor
Rolaid Compressors have a tradition of excellence with over 45 years of experience in designing and building compressors for the professional contractor. They are committed to continuing this tradition by analyzing and adapting to the changing needs and rigorous demands of the industry. Every compressor sold by Rolaid is subjected to a stringent series of tests, both in the factory and in the field. Each unit is factory tested prior to shipping for amp draw, voltage, compression, working pressure levels, RPM on gas models and air leaks. All Rolaid compressors include a warranty against manufacturer defects for a time period of 1 year from the date of retail purchase or 18 months from the date of manufacturer, whichever occurs first.
Features:
HORSE POWER | 2 HP |
---|---|
CFM DISPLACED | 8.7 CFM |
CFM DELIVERED | 4.1 CFM @ 90 PSI |
PUMP/MOTOR RPM | 3400 RPM |
OVERLOAD PROTECTION | Yes (Manual Reset Standard) |
LUBRICATION TYPE | Splash Lubrication |
PUMP OIL CAPACITY | 12 oz. |
REED VALVE SYSTEM | Yes (Standard) |
NUMBER OF CYLINDERS | 1 |
TANK CAPACITY | 4.5 Gallons |
L X W X H | 18"x16"x17" |
DECIBEL RATING | 80 dBA |
COUNTRY OF ORIGIN | Compressor Origin.pdf |

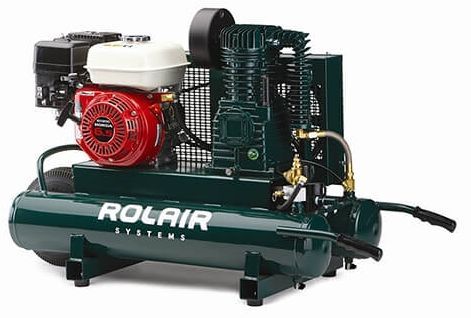

Rolair 6590HK18 6.5Hp Gas Belt Drive Air Compressor
The 6590HK18, which was engineered as an upgrade to the 4090HK17, delivers up to 50% more CFM by comparison. Delivering 13.8 CFM @ 90 PSI, this unit incorporates a 196 cc (GX200) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.
Features:
Horse Power | 196 cc (6.5 HP) |
---|---|
CFM Displaced | 17.9 CFM |
CFM Delivered | 13.8 CFM @ 90 PSI |
Lubrication Type | Splash Lubrication |
Pump Oil Capacity | 34 oz. |
Reed Valve System | Yes (Standard) |
Number of Cylinders | 2 |
Tank Capacity | 9 Gallons |
L x W x H | 46 x 19 x 28 in. |

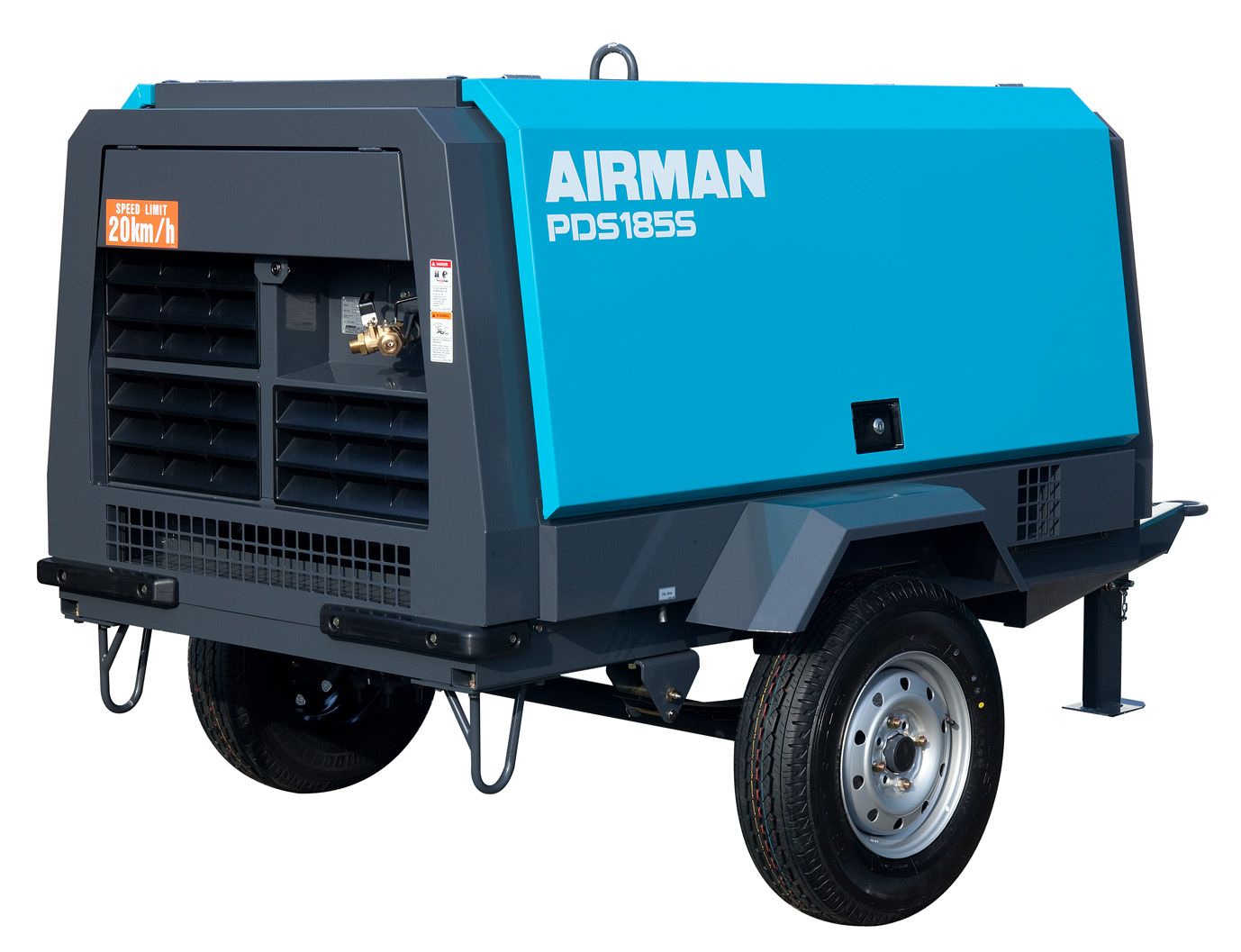

The workhorse of your fleet should be the very best. The AIRMAN PDS185 series provides proven power, reliability, longevity, and the superior fit and finish that AIRMAN is known for. If you want bulletproof, don't settle for anything less than an AIRMAN.
Features:
ENGINE MODEL | Yanmar 4TNV88C-DHKS |
---|---|
HORSEPOWER | 47.6 HP |
FREE AIR DELIVERY | 185 cfm |
WORKING PRESSURE | 100 psig |
MAX. WORKING PRESSURE | 120 psig |
AIR RECEIVER TANK CAPACITY | 5.29 gal |
AIR OUTLETS | ¾" x 2 |
FUEL CAPACITY | 24 gal |
SOUND LEVEL | 62 dBA |
OPERATING WEIGHT | 2,620 lbs |
DRY WEIGHT | 2,120 lbs |
WEIGHT W/ TOWING FRAME | 2,420 lbs |
DIMENSIONS (WITHOUT TOWING FRAME) | 76" L x 49" W x 45" H |
DIMENSIONS (WITH TOWING FRAME) | 132" L x 68" W x 62" H |

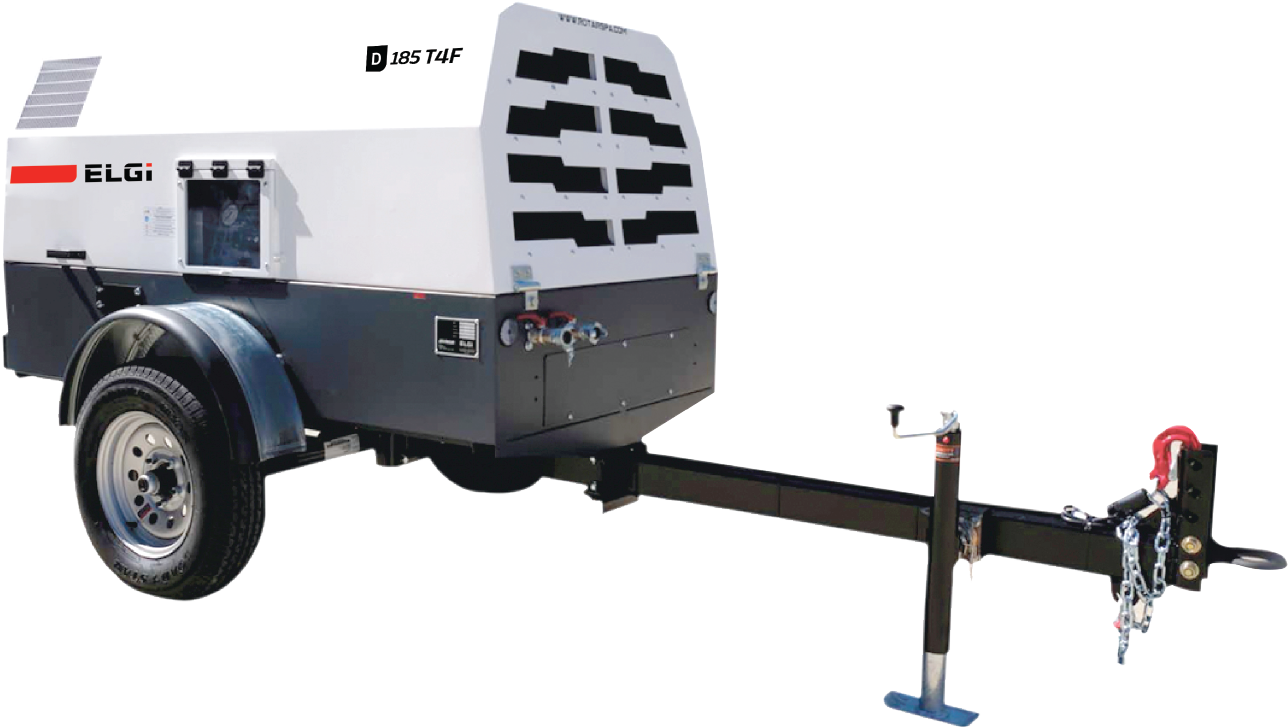

The Rotair D185T4F tow behind portable air compressor, designed to be durable, fuel efficient, quiet and reliable, gives you 185cfm @100psi using the Kohler KDI diesel engine. The new Kohler design doesn’t require costly DPF filtration systems to achieve Tier 4 final EPA requirements.
Features:
Model Number: | D185T4F |
---|---|
Horsepower HP: | 49.64 HP KOHLER KDI1903-TCR |
Power Type: | Diesel |
Air Compressor Type: | Portable |
CFM Rating: | 185 CFM |
Tank Size: | 23.25 gal |
Height: | 4.6 ft |
Width: | 5 ft |
Length: | 10.75 ft |
Weight: | 1980 lbs |

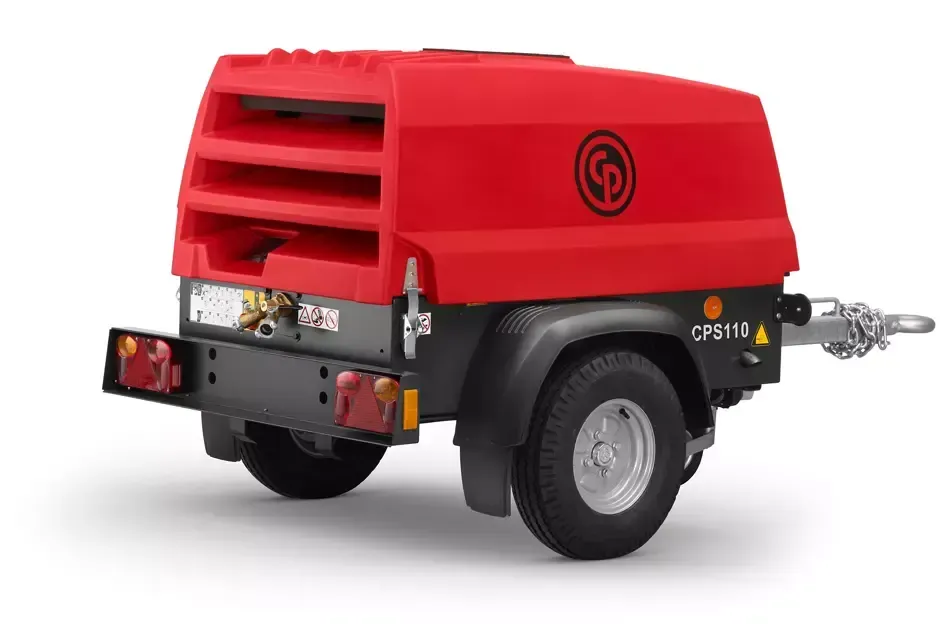

The Chicago Pneumatic CPS 110 is a single-stage, oil-injected, rotary screw type air compressor, powered by a liquid- cooled, three-cylinder turbocharged Kubota diesel engine.
The unit hosts the new generation C67 Screw element in its air end combined with a Kubota made diesel engine model D902, complying with Tier 4 Final emission standard.
Features:
Minimum effective receiver pressure | 29 Psi(g) |
Maximum effective receiver pressure | 128 Psi(g) |
Normal effective working pressure | 100 Psi(g) |
Actual Free Air Delivery | 110 cfm |
Fuel consumption at 100% load | 1.46 Gal/Hr (L/Hr) |
Fuel consumption at 75% load | 1.20 Gal/Hr (L/Hr) |
Fuel consumption at 50% load | 0.86 Gal/Hr (L/Hr) |
Fuel consumption at 25% load | 0.62 Gal/Hr (L/Hr) |
Max Sound Pressure Level (Lp @ ISO 2151) | 71 dB(A) |
Emissions stage | Tier 4 Final |
Coolant | GENCool |
Number of Cylinders | 3 |
Bore | 72 mm |
Stroke | 73.6 mm |
Swept Volume | 0.898 l |
Capacity of Oil Sump- Initial Fill | 0.97 (3.67) US Gal (L) |
Capacity of Oil Sump- Refill (max) | 1.00 (3.79) US Gal (L) |
Capacity of Cooling System | 1.19 (4.50) US Gal (L) |
Capacity of Compressor Oil System | 1.98 (7.50) US Gal (L) |
Net Capacity of Air Reciever | 2.64 (10.00) US Gal (L) |
Air Volume at Inlet Grating (approx.) | 1970 cfm |
Capacity of Standard fuel tanks | 7.52 (28.50) US Gal (L) |
Safety valve- min. opening pressure | 143.5 psi(g) |
