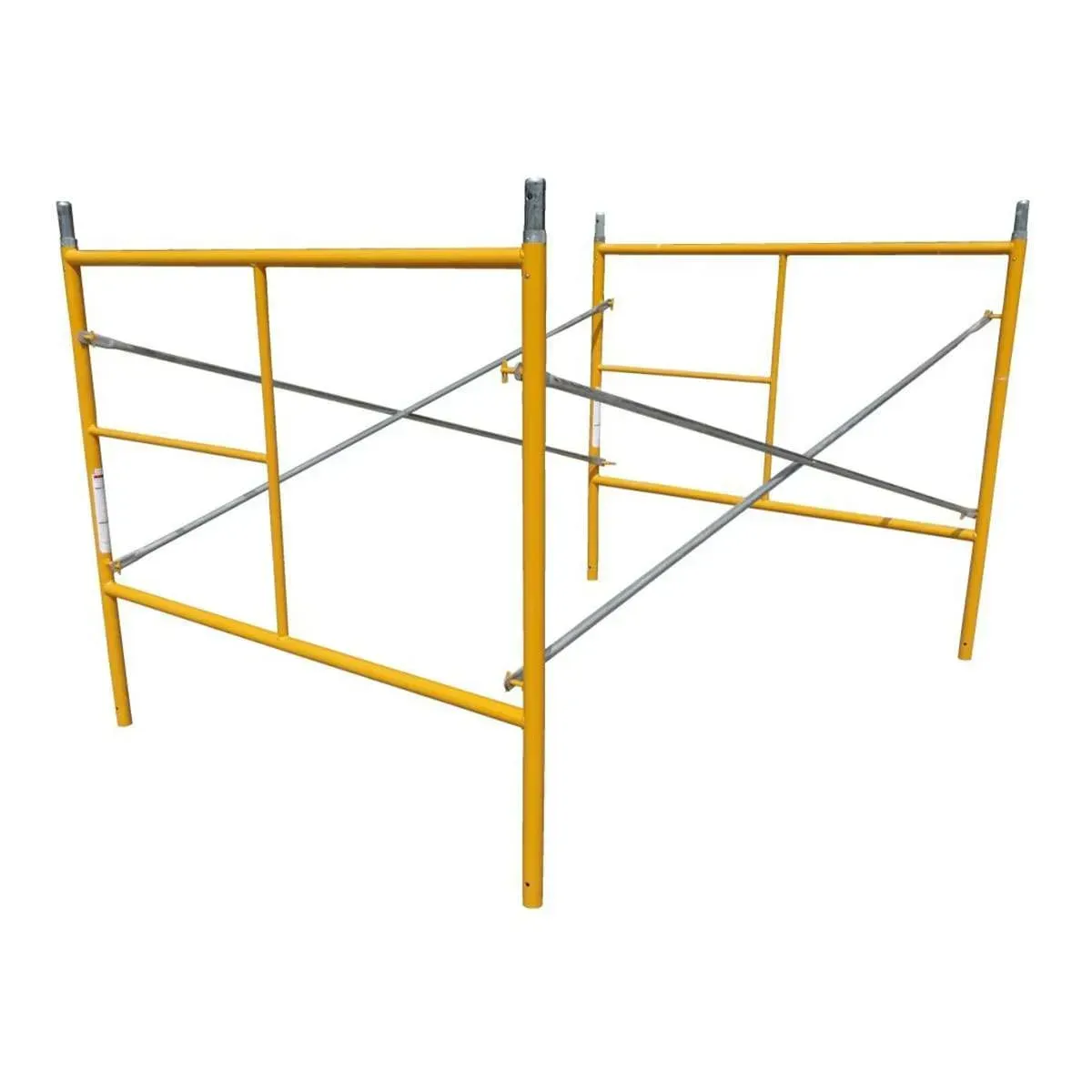

BilJax Style 5ft x 5ft X 7FT LADDER STYLE
This set is a great entry level scaffolding set and is perfect for homeowners and DIY handymen. The frames has one ladder rung and uses our gravity flip locks. To maximize the life and longevity of our scaffold sets we apply a high visibility yellow powder-coating.
The Set Includes:
Weight | 91.8 lbs |
---|---|
Frame Tube Outside Diameter | 1.625″ |
Frame Tube Wall Thickness | 2.3mm |
Frame Dimensions | 5′ H X 5′ W |

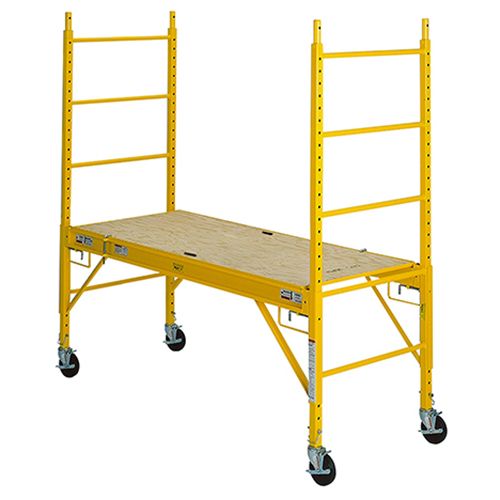

BilJax Style Multipurpose MOBILE SCAFFOLDING
Overall Depth | 29in |
---|---|
Overall Width | 72in |
Overall Height | 6ft |
Load Capacity | 1,000lb |
Material | Steel |
Max Work Height | 10ft 6in |
Platform Height | 2ft - 4ft |
Platform Depth | 29in |
Platform Width | 72in |

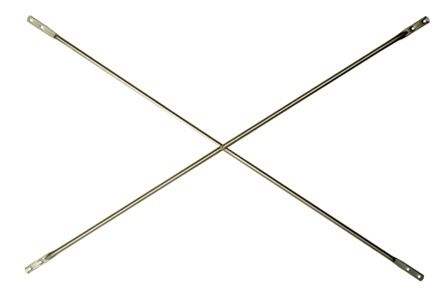

Scaffolding Cross Brace for 10' bay. Compatible with all scaffold frames that have a 27-3/4" lock spacing. (Bil Jax Style Frames) Zinc Plated.

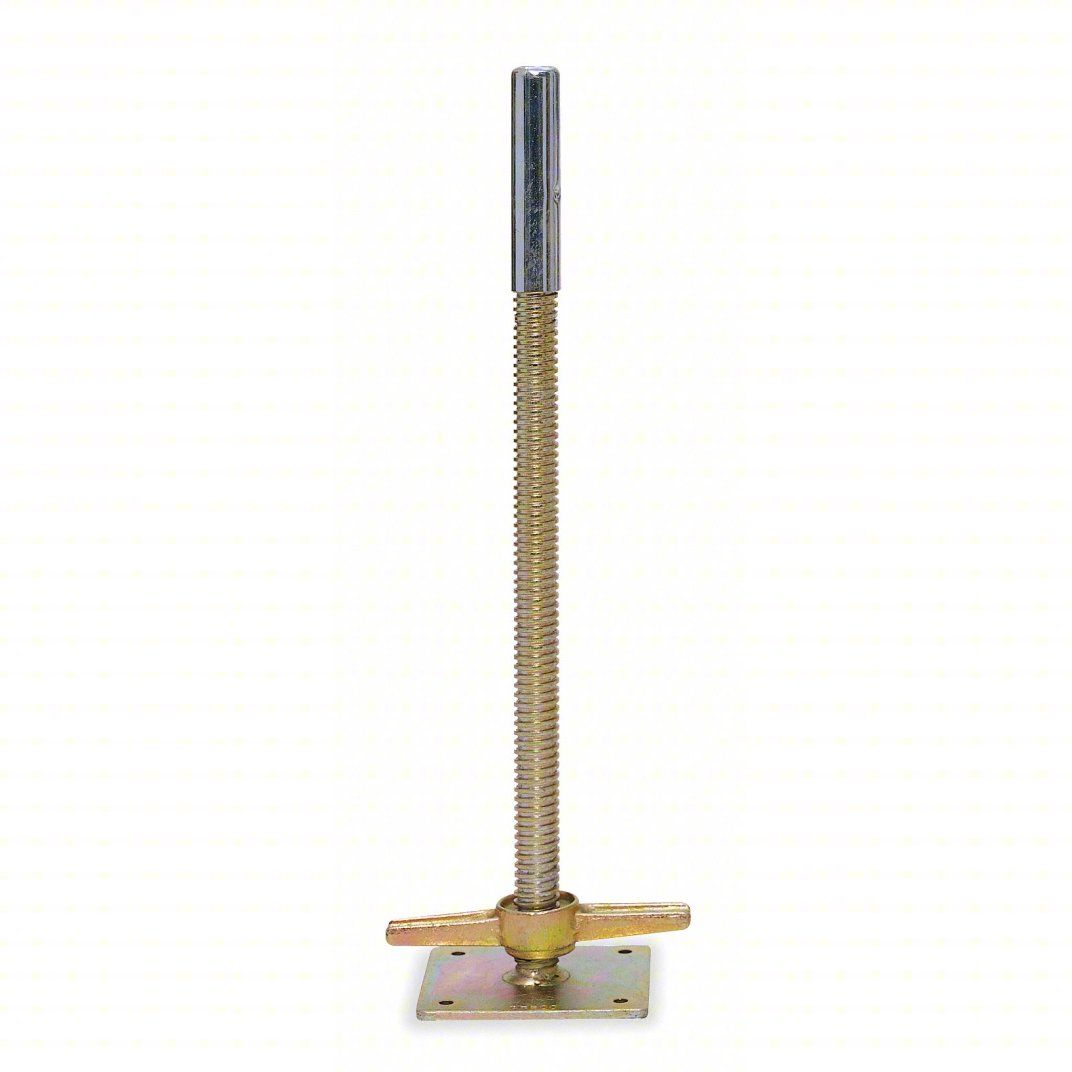

BIL-JAX SCAFFOLD LEVELING JACK: 6 IN OVERALL LG, 6 IN OVERALL WD, 24 IN OVERALL HT

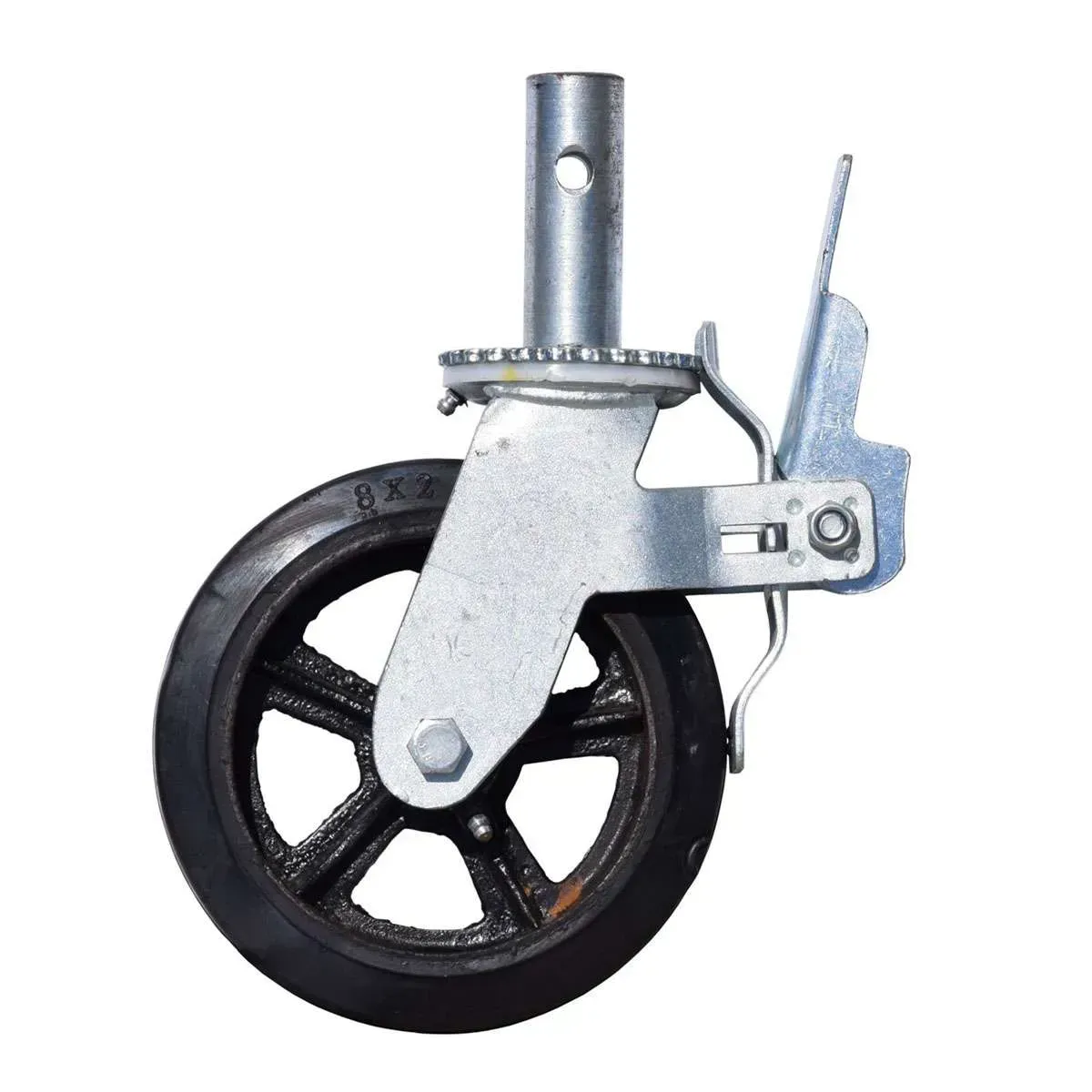

8″ Scaffolding Caster Wheel
The stem of this caster wheel is 1 3/8″ OD (#6 tube) with a 4″ length. It has a double safety margin built into the load rating. Our wheel is heavy duty, load tested to handle 500 pounds with a 8-to-1 safety margin. This wheel is very heavy duty. The steel body is not quite as beefy as the more expensive polycarbonate one, but it’s plenty of wheel for 95% of all applications. Works very nicely in highly demanding rental operations. It loads to 8,100 pounds in load tests which is actually higher than the polycarbonate wheel… The stem on our caster this caster wheel is 1.375″ OD (#6 tube) with a 4 inch length. It has a double safety margin built into the load rating. Our wheel is heavy duty, load tested to handle 500 pounds with an 8-to-1 safety margin. The scaffold caster wheel is an 8″ cast-iron wheel with a rubber overlay that is 2 inches wide and over an inch of rubber covering the iron caster wheel. There are ball bearings in the pivot mechanism to handle high loading. Double zirk grease fittings. Double lock to maintain rock solidness. Locks to prevent wheel pivot and locks to prevent the scaffold caster wheel from rolling. Upper steel body is galvanized. Hole location on stem is 2.5 inches from the base.

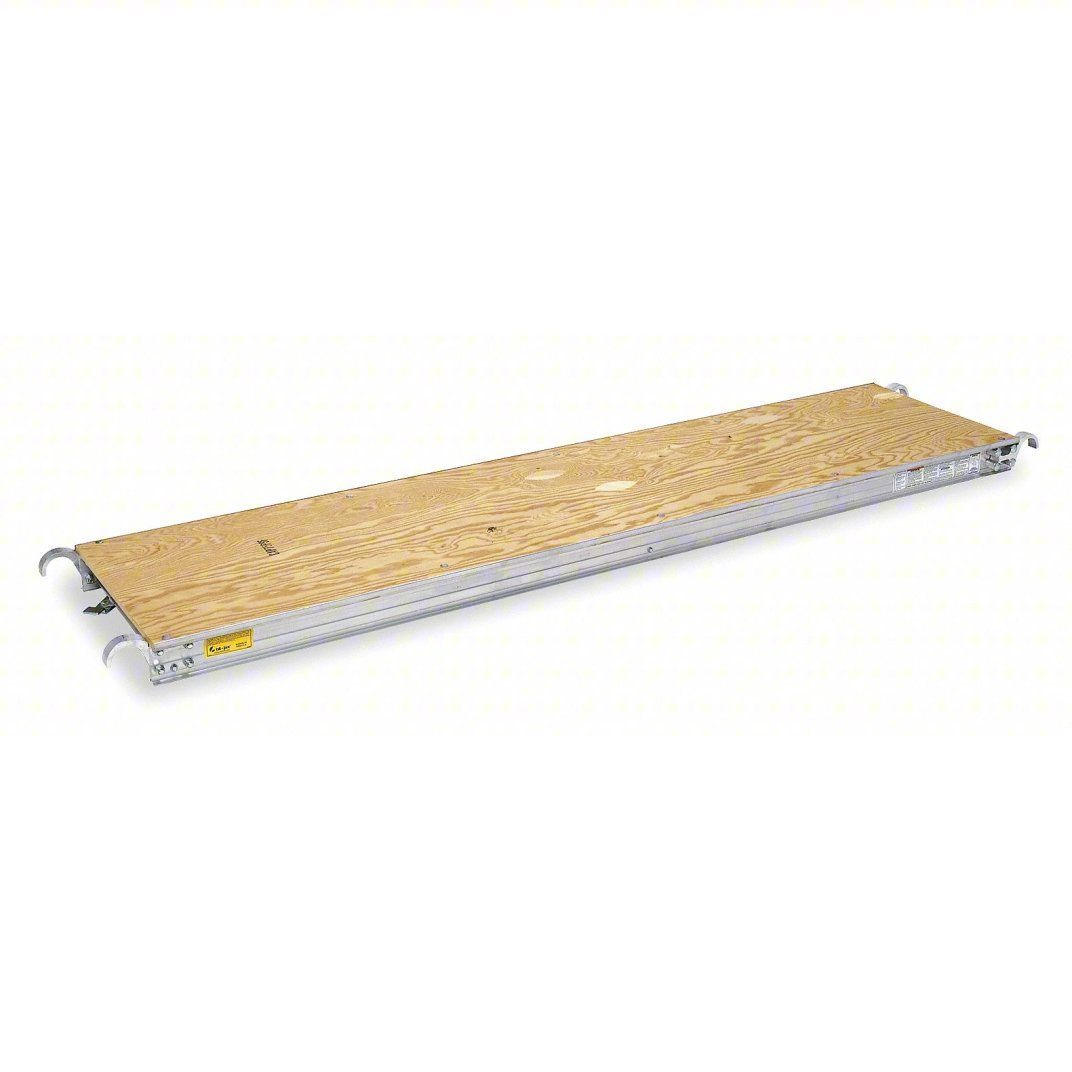

BIL-JAX 7FT Scaffold Plank: 7 ft Aluminum/Wood
These scaffold planks feature aluminum frames and plywood decks. Aluminum cross members and hooks help to offer lightweight durability.
Features:
Overall Length: 7 ft
Overall Width: 19 in
Overall Height: 4 in
Material: Aluminum/Wood
Load Capacity: 75 lb/sq ft
