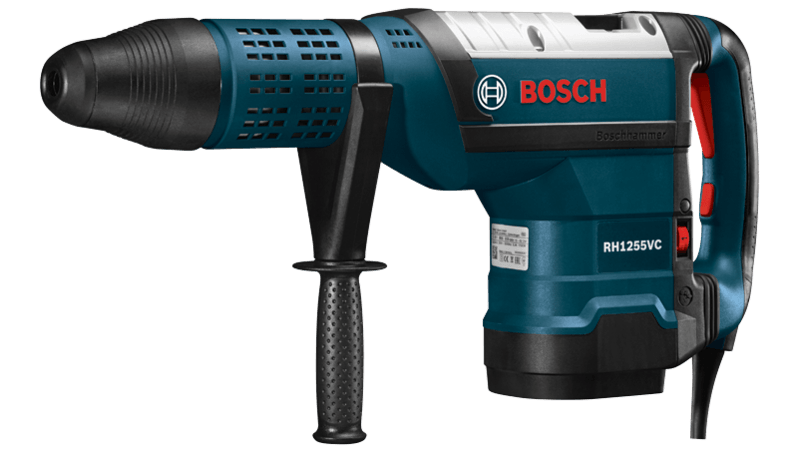

Amperage | 15.0 |
---|---|
Chuck Design | Keyless |
Chuck Size | 2 in |
Drive System | SDS-max |
Height in | 11.3" |
Impact Energy/EPTA (ft. lbs.) | 14.1 Ft.-Lbs. EPTA |
Length in | 23.5" |
Material | Plastic, Metal |
Max Bit Diameter | 2" |
Max. Hole Dia. - Core Bit | 6" |
No Load BPM | 1,000-2,150 |
No Load RPM | 100-220 |
Notes | *Impact Energy measured based on EPTA guidelines |
Reverse | No |
Variable Speed | Yes |
Voltage | 120V |
Weight | 26.2lb |
Weight (lbs.) | 26.2 |
Width in | 5.0" |
Features:

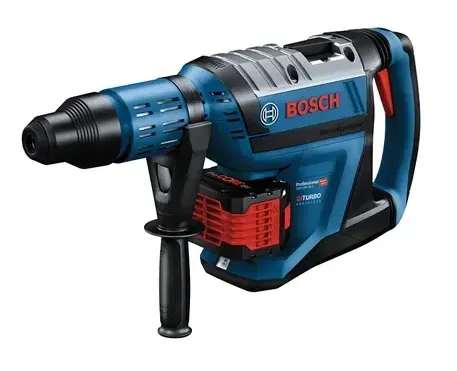

Battery voltage | 18.0 V |
---|---|
Impact energy (according to EPTA 05/2016) | 12.5 J |
Impact rate at rated speed | 0 – 2,760 bpm |
Rated speed | 0 – 305 rpm |
Weight excl. battery | 8 kg |
Tool holder | SDS max |
Drilling dia. in concrete with hammer drill bits | 12 – 45 mm |
Opt. app. range in concrete with hammer drill bits | 20 – 40 mm |
Sound pressure level | 94 dB(A) |
Features:

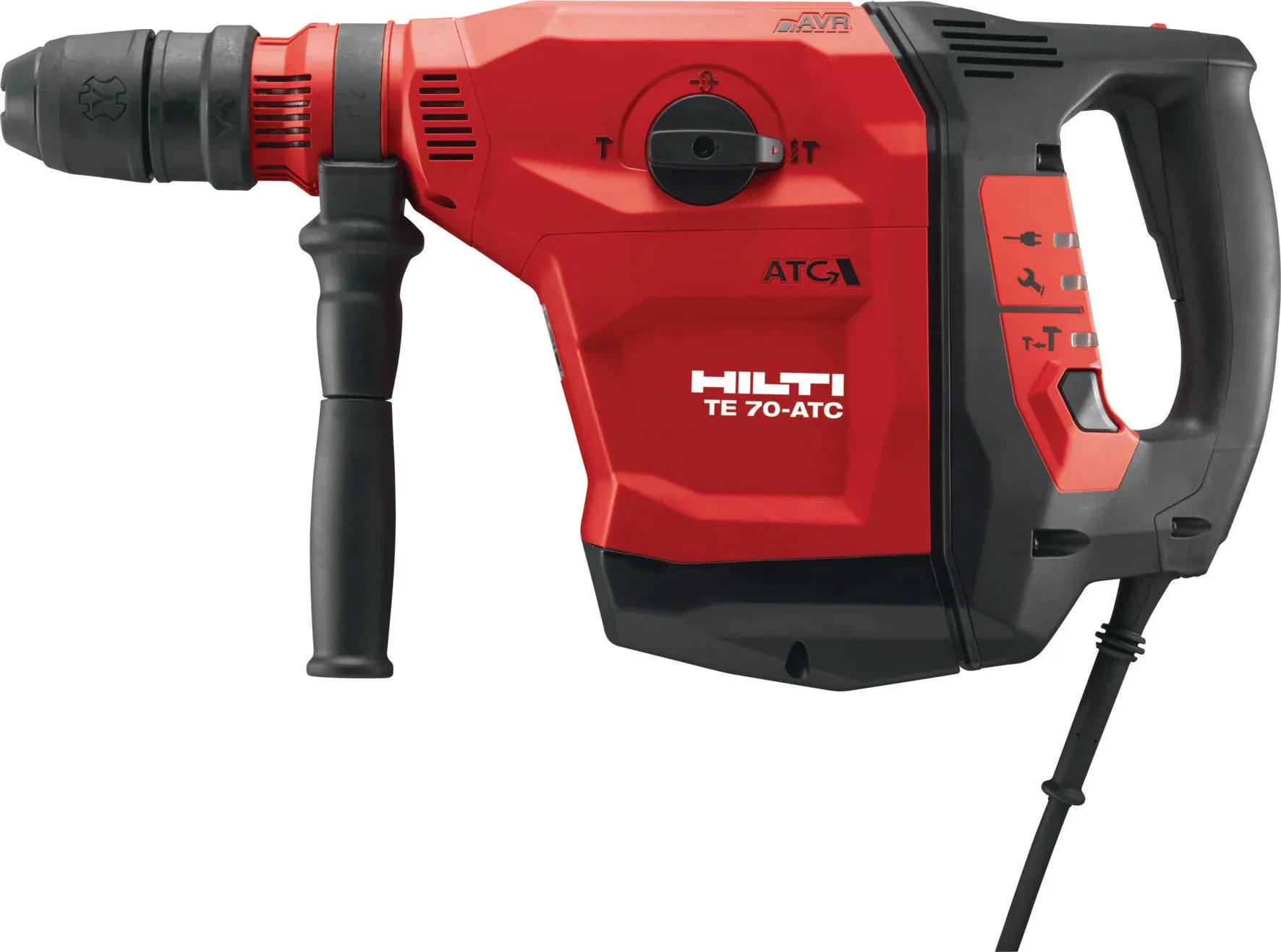

Weight according EPTA-Procedure 01/2003 | 22 lb. |
---|---|
Single impact energy | 10.7 ft-lbs |
Hammer drilling diameter range | 15/32 - 2-5/32 in |
Optimum Hammer drilling range | 25/32 - 2-5/32 in |
Hammer drilling RPM | 245 rpm |
Full hammering frequency | 2830 impacts/minute |
Functionality | Active Torque Control (ATC), Chiseling, Power reduction, Active Vibration Reduction (AVR) |
Triaxial vibration value for hammer drilling into concrete (ah,HD) | 8.3 m/s² 1 |
Dust removal system available | TE DRS-Y, TE DRS-D |

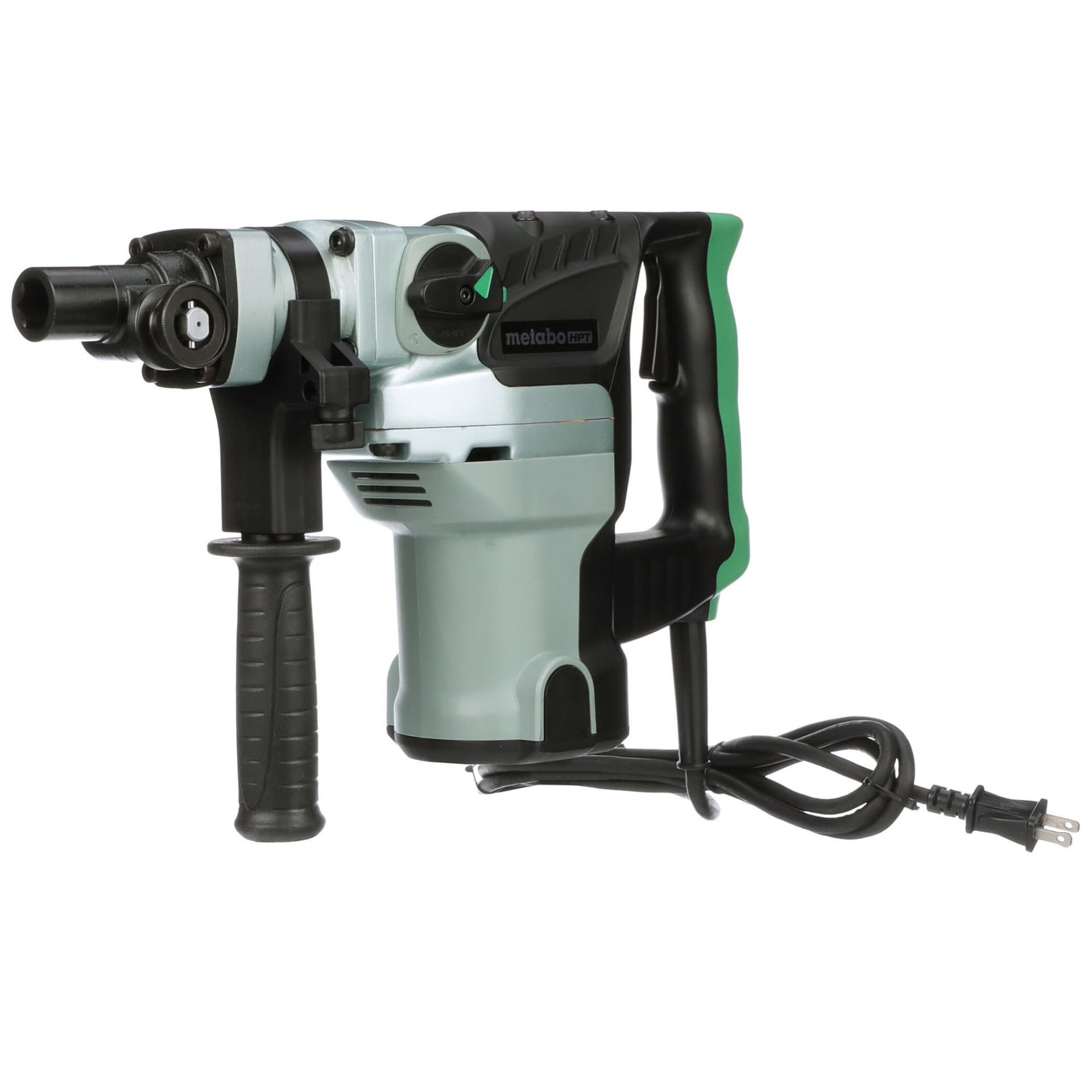

The 1-1/2 Inch Spline Shank Rotary Hammer (DH38YE2) is the next generation in Metabo HPT hammer technology. Compared to its predecessor the DH38YE, the DH38YE2 packs power into a more ergonomic body that is 2.9 lbs lighter, while delivering less vibration and a lower noise level. The DH38YE2 is designed for drilling holes in concrete for anchors or rebar, demolishing and chiseling concrete, cutting, digging, tamping or driving ground rods.
Features:
Weight according EPTA-Procedure 01/2003 | 22 lb. |
---|---|
Single impact energy | 10.7 ft-lbs |
Hammer drilling diameter range | 15/32 - 2-5/32 in |
Optimum Hammer drilling range | 25/32 - 2-5/32 in |
Hammer drilling RPM | 245 rpm |
Full hammering frequency | 2830 impacts/minute |
Functionality | Active Torque Control (ATC), Chiseling, Power reduction, Active Vibration Reduction (AVR) |
Triaxial vibration value for hammer drilling into concrete (ah,HD) | 8.3 m/s² 1 |
Dust removal system available | TE DRS-Y, TE DRS-D |

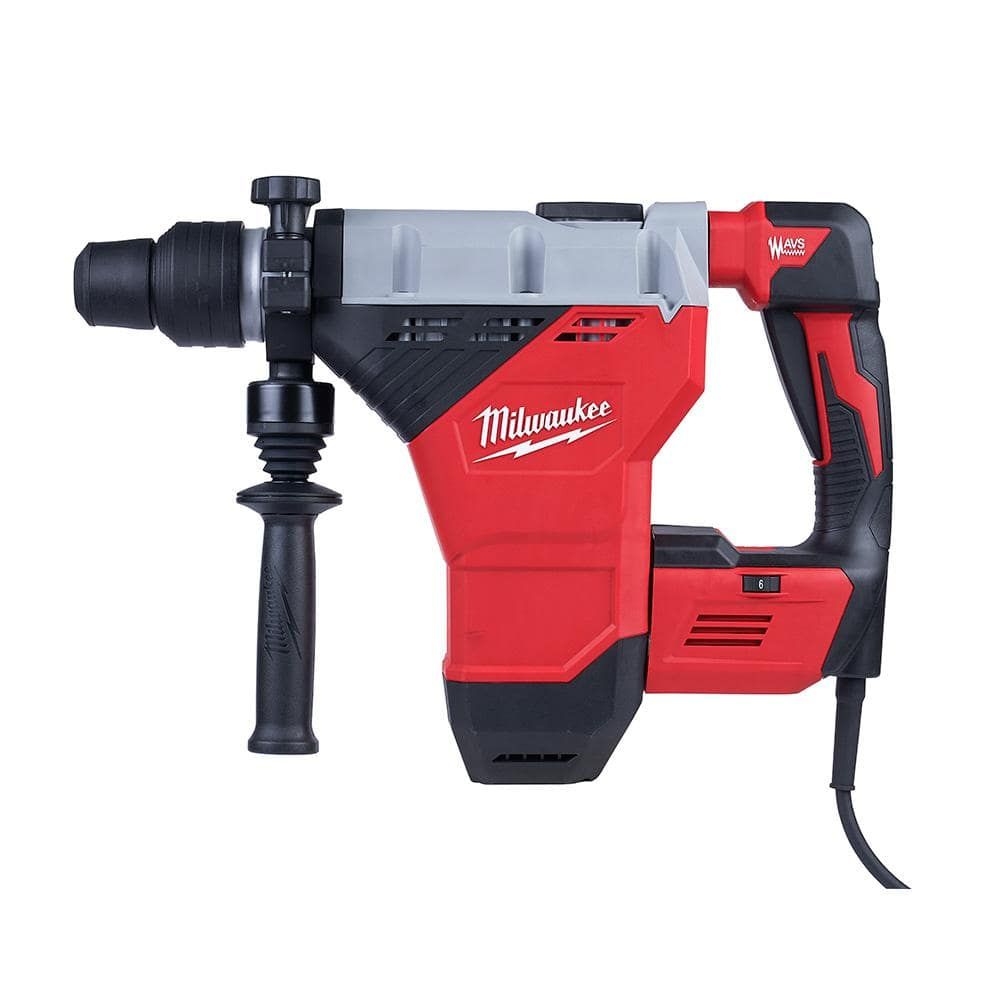

The MILWAUKEE 3/4" SDS Max Rotary Hammer has a powerful 15A Motor capable of delivering 8.1 ft-lbs of impact energy for the most demanding applications. The AUTOSTOP E-Clutch prevents over-rotation of the tool in case of tool lock up giving users a more controlled experience while using the corded rotary hammer drill. The variable speed dial allows users to set the optimal speed per application while two modes, Rotary Hammer and Hammer Only, allow easy transitions between drilling large holes or chipping applications. When chipping, a lock-on button allows users to chip without constantly pulling the trigger. Built-in Advanced AVS (Anti-Vibration System) minimizes the vibration users feel while using the rotary hammer drill.Powerful 15A Motor
Features:
Amperage | 15 A |
---|---|
Chuck Size | 3/4 in |
Cord Length | 16.4 |
Maximum Speed | 385 RPM |
Product Weight | 21.65 lb |
Blow Energy | 8.1 |
Chuck Type | SDS-Max |
Power Tool Features | Keyless Chuck, Variable Speed |
