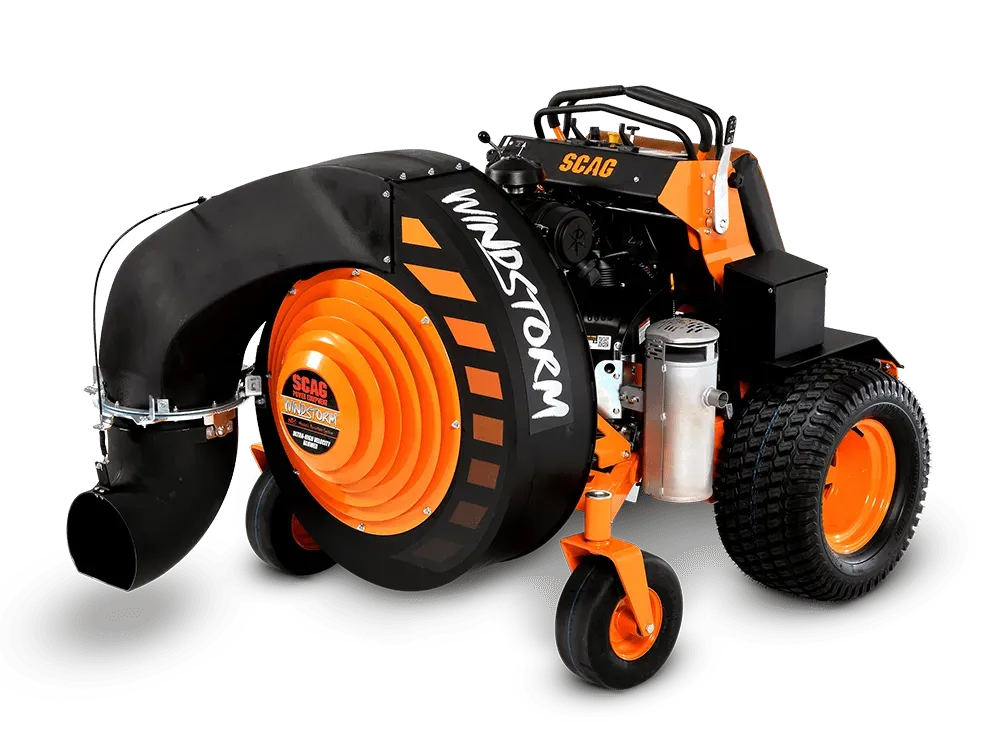

| Model |
WS23-37BV-EFI |
| Total Fuel Capacity |
8 Gallons |
| Engine |
Briggs Vanguard™ BIG BLOCK EFI |
| Horsepower |
37 HP |
| CFM Output |
Effective CFM – 6,000
Theoretical Peak CFM – 7,500 |
| Electric Clutch |
Ogura GT3.5 (250 ft lb) with Softstart Electric Clutch Control |
| Frame Construction |
All-steel, welded 10-gauge |
| Impeller Construction |
All-steel, welded, 8-blade, dynamically balanced |
| Impeller Mounting |
Tapered locking hub |
| Impeller Diameter / Width |
23″ / 8.5″ |
| Blower Housing Construction |
All-steel, welded, 12-gauge front and side housing plate and 10-gauge back housing plate |
| Blower Housing Width |
10″ |
| Blower Tilt Angle |
16 degrees of total vertical tilt; 180 degrees of left/right horizontal rotation |
| Handlebar |
n/a |
| Vibration Control |
n/a |
| Discharge Opening |
69 square inches |
| Left / Right Discharge Control |
Nozzle Direction System offers up to 180 degrees of rotation. |
| Discharge Angle Control |
Yes – mechanical lever |
| Axle |
n/a |
| Front Wheel(s) |
13″ x 5″-6″, flat-free |
| Rear Wheels |
24″ x 12″-12″, 4-ply |
| Accessories |
Light Kit, Chrome Wheel Covers, Air Filter Monitor |
| Length |
71.5″ |
| Width |
51″ |
| Height |
47.25″ |
| Weight |
943 lb |
